200,000+ Bags Per Day
Designed for large-volume paper shopping bag orders with high output and lower unit cost.
Paper Bag Making Machine
Intelligent Paper Bag Making Machine
Model: Tech 17 260S AIA
Tech 17 260S AIA is an intelligent high-speed paper bag production line for large-volume shopping bag orders, integrating bag making with automation planning for packing, sealing and palletizing.
150-300 pcs/min70-140 gsm paperTech 17 260S AIA200,000+ bags/day
Main Features
Tech 17 260S AIA is an intelligent high-speed paper bag production line for large-volume shopping bag orders, integrating bag making with automation planning for packing, sealing and palletizing.
Full-Line Automation

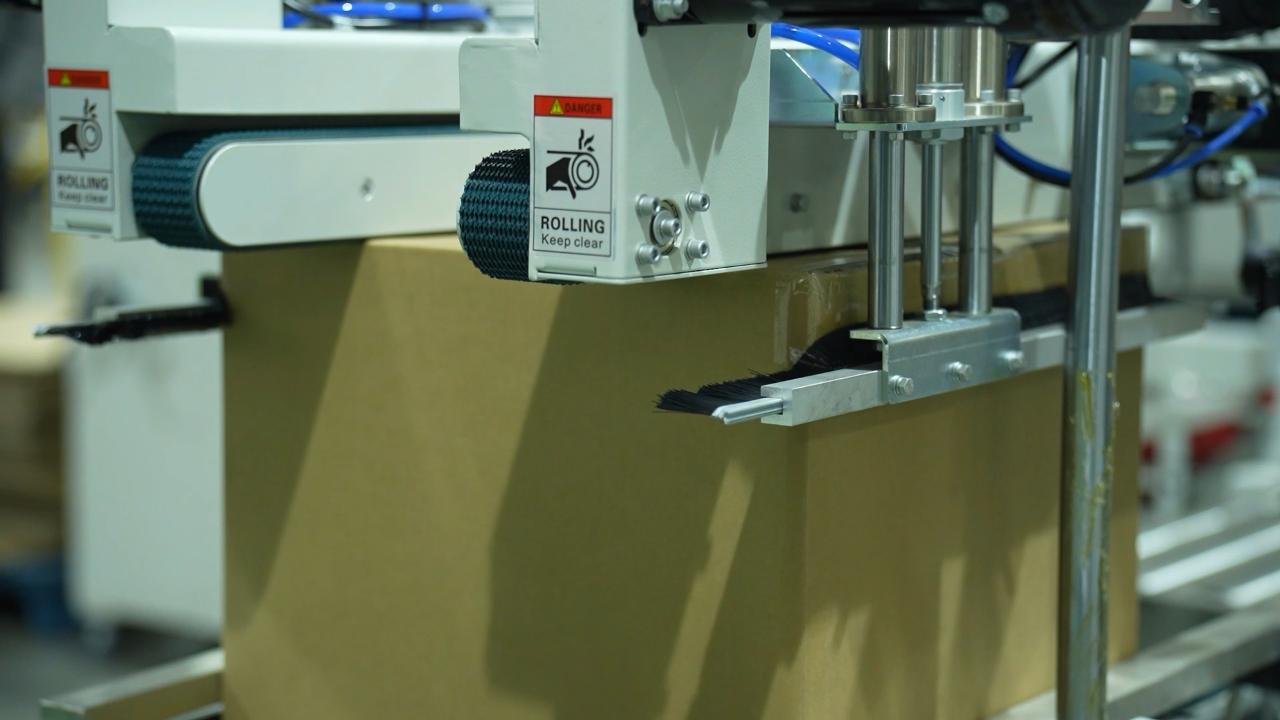

Can connect automatic bagging, binding, packing, carton sealing and palletizing according to project needs.
Fast Operator Training
Simplified operation helps new operators start production faster with less dependence on senior engineers.
Flexible Paper Bag Range
Supports twisted handle and square bottom paper bag production for retail, food and gift packaging.
Video
Use the video area to present roll feeding, handle making, paper tube forming, bottom forming, bag conveying and downstream automation. Request a running video according to your bag size.
Inquire NowPlayProduct Description
Optional automation includes handle unit configuration, automatic packing, carton sealing, palletizing and customized factory layout.
Bag Type
Suitable for shopping paper bags, food bags, gift bags, retail bags, twisted-handle bags and square-bottom paper bags.
Optional Function
Optional automation includes handle unit configuration, automatic packing, carton sealing, palletizing and customized factory layout.
Production Flow
Paper Roll Feeding
Web Guide
Handle Making
Handle Pasting
Tube Forming
Side Gluing
Cutting
Bottom Creasing
Bottom Gluing
Bottom Forming
Bag Delivery
Packing
Palletizing
Product Parameter
| Model No. | Tech 17 260S AIA |
|---|---|
| Output | 200,000+ bags/day |
| Bag Width | 120-400 mm |
| Paper Roll Diameter | Up to 1500 mm |
| Paper Weight | 70-140 gsm |
| Machine Speed | 150-300 pcs/min |
| Total Power | 32-34 kW |
| Machine Weight | 13000-18000 kg |
| Machine Dimension | 12 x 5 x 3.2 m / 15 x 6 x 3.5 m |
Detailed Pictures
Localized product pages present machine modules, production process and optional automation clearly for faster technical evaluation.
