One-Time Online Handle Forming
The machine forms loop handles, attaches the handle to the bag body and completes non-woven box bag making in one continuous production process.
Non Woven Bag Making Machine
Automatic Non-Woven Box Bag Making Machine
Model: Tech 26
Latest-generation automatic non-woven box bag making machine with online handle attachment, designed for stable output, lower labor dependence and complete bag production in one line.
90-100 pcs/minSpunbonded PP 35-100 GSMOnline handle attachmentTech 26 model
Main Features
Latest-generation automatic non-woven box bag making machine with online handle attachment, designed for stable output, lower labor dependence and complete bag production in one line.
Compact High-Output Layout
The overall width is reduced for a more compact factory layout while output is improved and energy consumption is optimized for long-shift production.

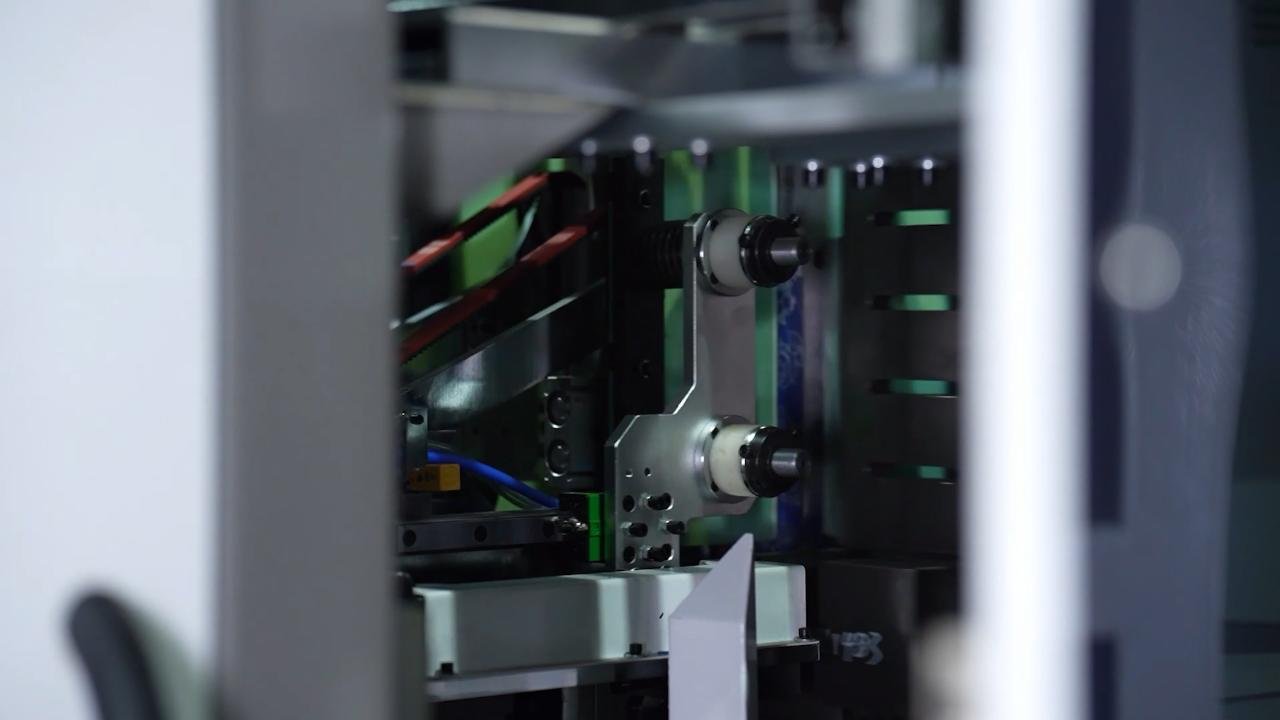

Reliable Ultrasonic Welding
Ultrasonic welding replaces needle-and-thread sewing, giving clean sealing edges, strong bonding and lower maintenance from frequent needle replacement.
Multi-Function Bag Production
By changing molds and handle configurations, the line can support multiple bag types such as box bags, T-shirt bags, D-cut bags, shoes bags and ribbon-through bags.
Video
Watch the machine structure, online handle forming, sealing and finished bag process. Request the latest running video for your target bag size and material.
Inquire NowPlayProduct Description
Optional downstream automation can include smart detection, automatic defect rejection, automatic strapping, packing, carton sealing and palletizing for a higher-level intelligent production line.
Bag Type
Suitable for non-woven box bags with online handles and expandable to multiple reusable shopping bag structures according to mold configuration.
Optional Function

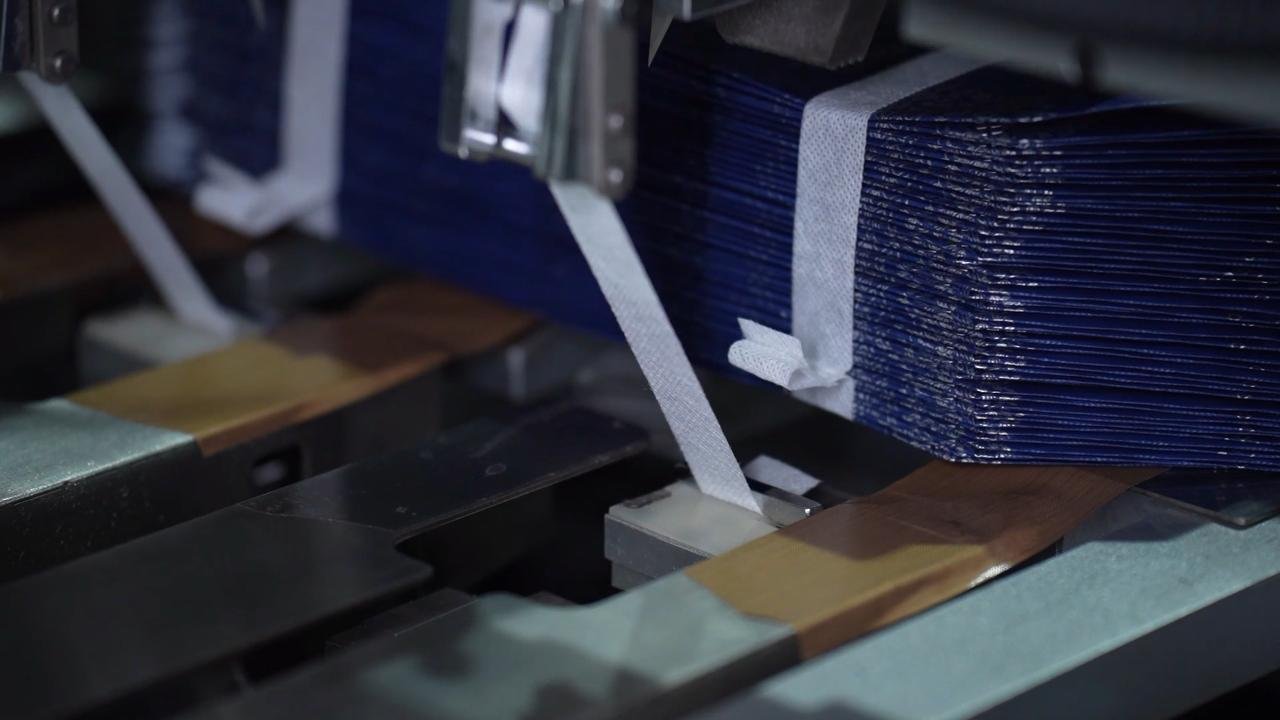

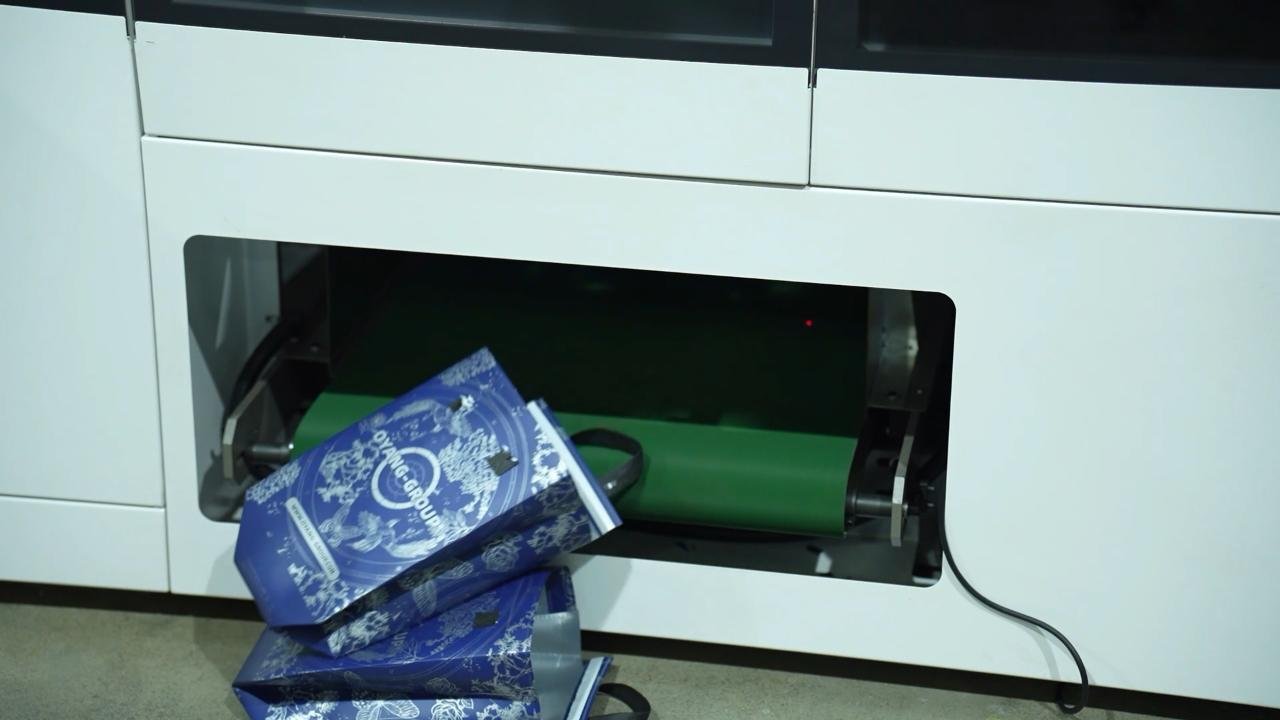

Optional downstream automation can include smart detection, automatic defect rejection, automatic strapping, packing, carton sealing and palletizing for a higher-level intelligent production line.
Production Flow
Online Handle Fixing
Auto Web Guide
Triangle Folding
Side Sealing
Bag Mouth Folding
Bottom Sealing
Side Gusset
Traction System
Handle Punching
Online Handle Making
Cutting System
Collection
Winding Waste
Product Parameter
| Model No. | Tech 26 |
|---|---|
| Material Type | Spunbonded Non Woven Fabric (PP) 35-100 GSM |
| Handle Length | 380-600 mm |
| Handle Width | 25 / 30 mm |
| Roll Diameter | 1000 mm |
| Bag Making Speed | 90-100 pcs/min |
| Machine Size | 9500 x 3600 x 2600 mm |
| Bag Width | 200-450 mm |
| Bag Height | 200-450 mm |
| Gusset | 80-200 mm |
| Power Requirement | 380V |
| Total Power | 65 kW |
| Overall Weight | 11800 kg |
Detailed Pictures
Localized product pages present machine modules, production process and optional automation clearly for faster technical evaluation.
